Goodman R32 Ready Furnace with Arzel (Mitigation)

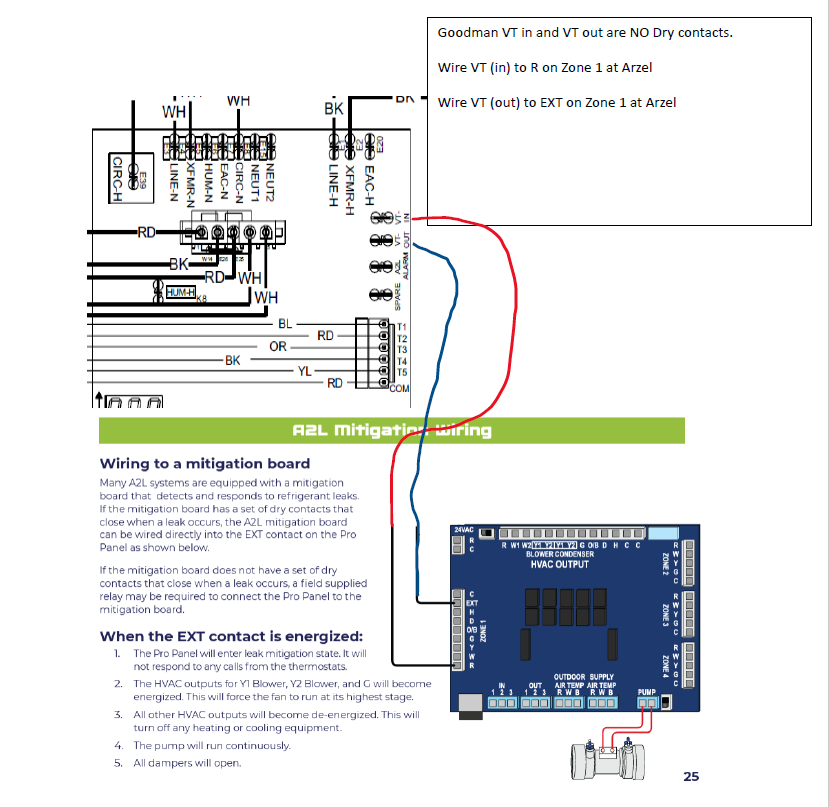

Attached is a wiring diagram along with Sequence of operation when using Arzel zoning on Goodman R32 Furnaces. The Dragon Fly mitigation control would wire into the Arzel the same way as it also has the V (in) and V (out) terminals. NOTE: Arzel PAN-PRO panels ONLY!
