Coleman Modulating Furnace Troublshooting
print icon

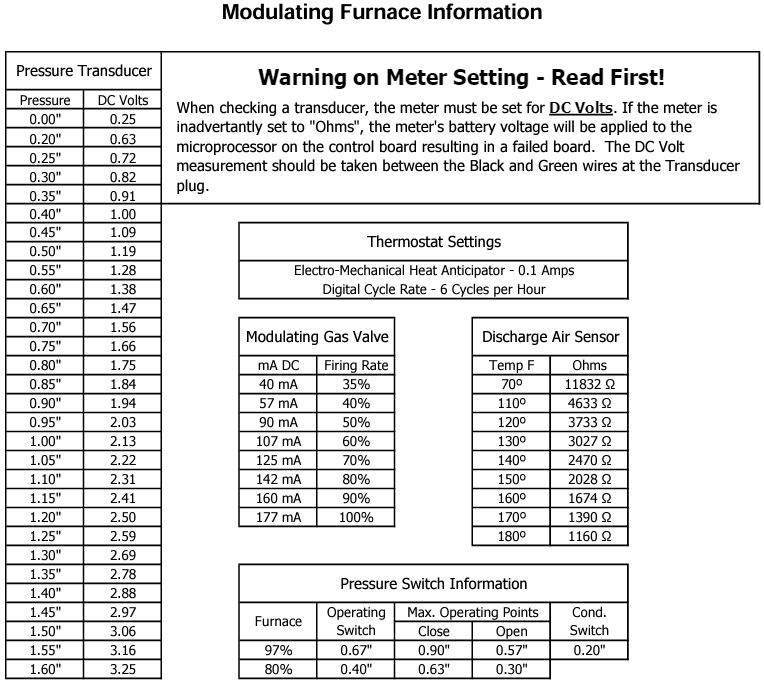

Here is a guide for UPG modulating furnace w/the PWM valve.



Thermostats and or bad wiring can cause unexpected behavior with this furnace. When testing, be sure to remove all thermostat wires from terminal strip.

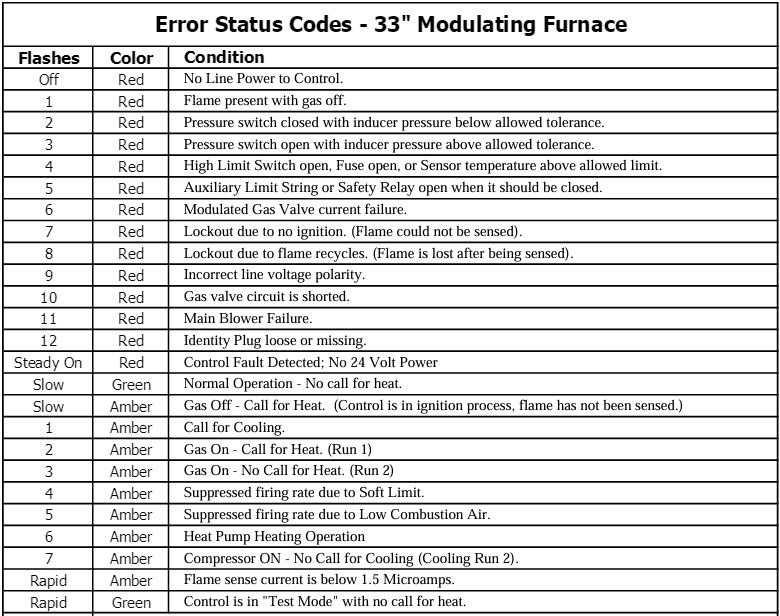

coleman mod furnace error codes



Here is a manual and gas valve troubleshooting sheet.
