UTY-RVRU “Kagami” Remote Control sensor activation— H-Series systems

Discussion:

Default room temperature sensing for all Airstage H-Series systems is from the return air temperature sensor within the indoor
unit. When desired, the internal temperature sensor of the UTY-RVRU Kagami Remote Control can be activated to read the room
temperature at the RC instead of the indoor unit return air sensor.

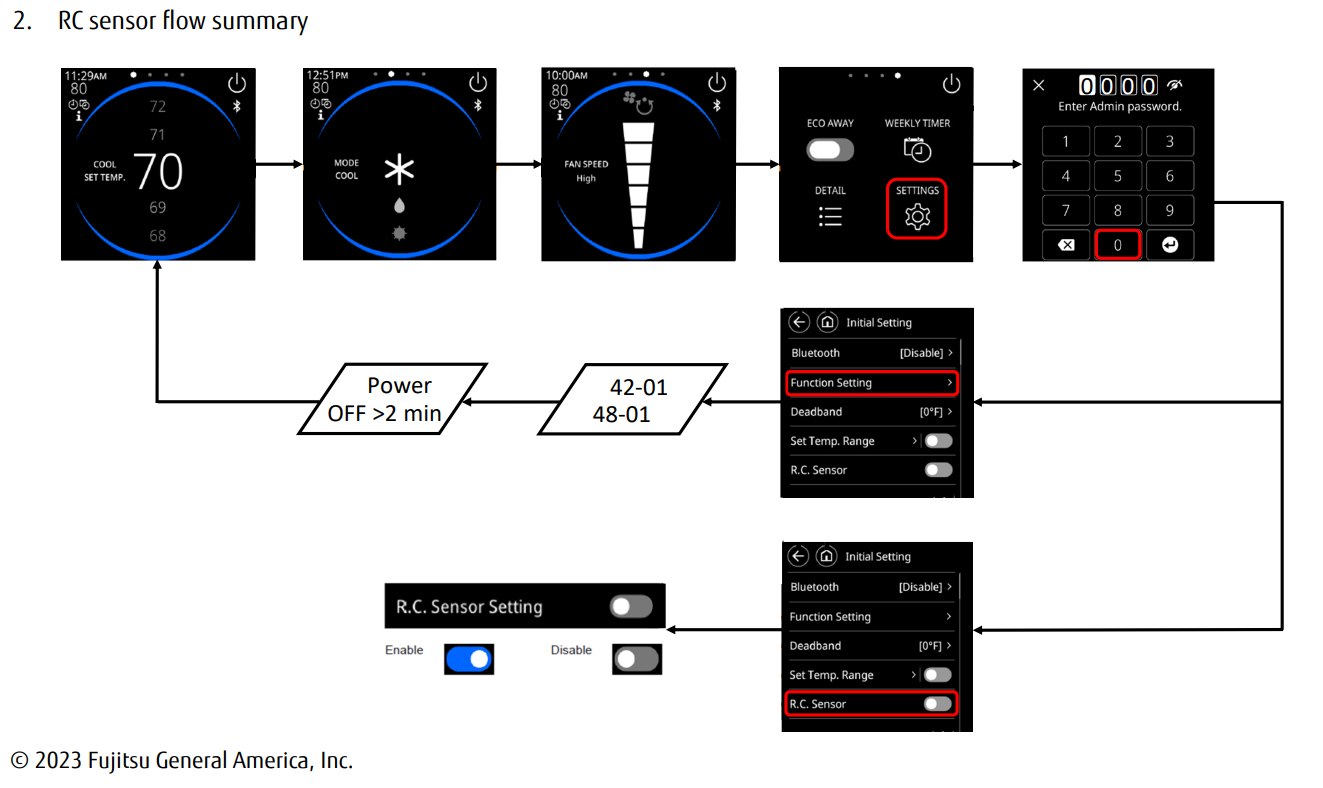

This document provides an overview of how to activate the internal sensor of Remote Controller. Please also refer to the
UTY-RVRU Installation Instructions for complete details.

Directions:

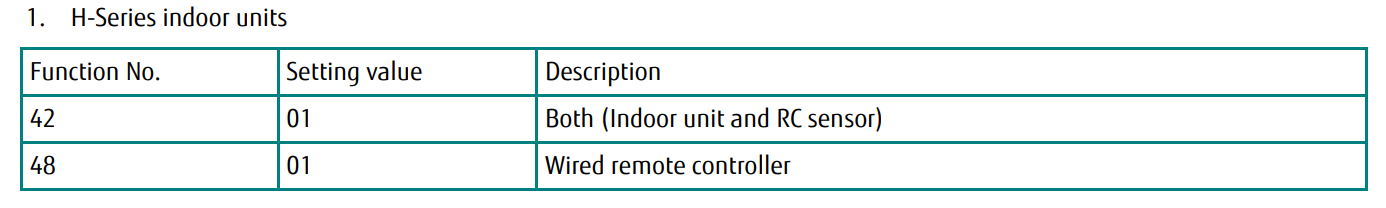

IMPORTANT– Please perform the indoor unit function setting change requirements FIRST:
