Goodman communicating and non communicating wiring
print icon

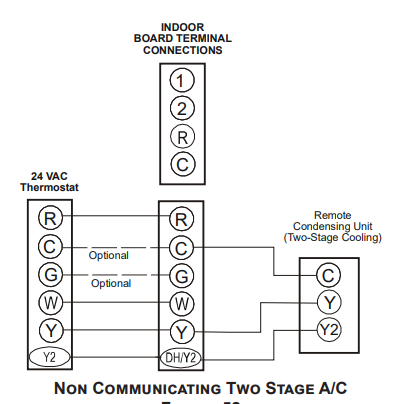

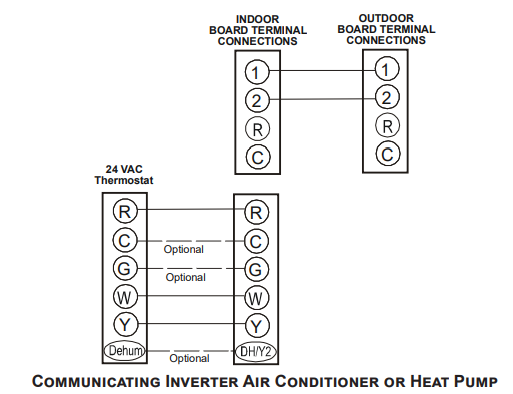

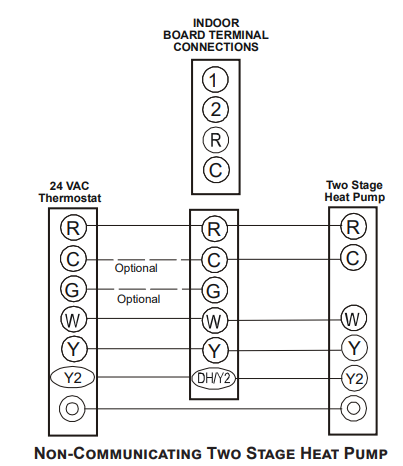

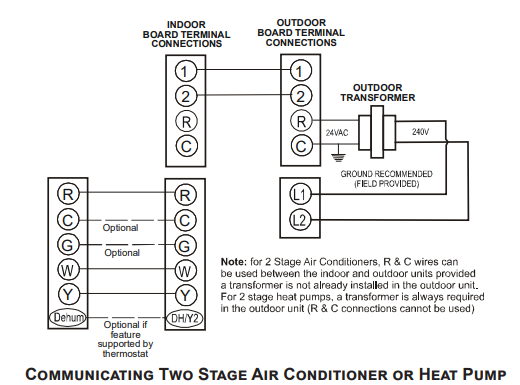

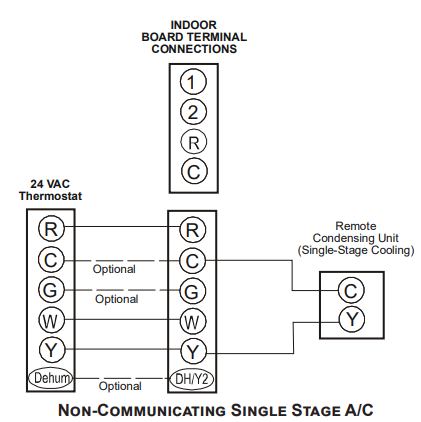

The Goodman line of communicating equipment no longer requires a special communicating control. The indoor and out door sections will communicate between themselves if wired correctly. Its is also possible to match non communicating equipment to communicating equipment, and achieve operation. This would be considered a "legacy" connection, or standard wiring. The number of wires available needed can change based on your set up. Here are a few examples.
