Here are documents for the CMN modulating furnace.



The G97CMN has an older series (A) and a newer (B) Series.



The A series has the older style board. Still has the dip switches that need to setup as needed. Be sure that cooling airflow is setup and measured.



The B series will have a the new NFC board. This will enable you to setup all the board functions via the fast mobile tech app. See the related articles for more information.



Tips on using NFC:

Apple phones will have the NFC chip near the top of the phone. Android will have it more towards the center of the phone. If you have a super thick case, then consider taking it off if you cannot get it to connect.



G97CMN Series A Install:





G97CMN Series B Install:





G97CMN Specfications:











G97CMN Technical Manual:



Models:



Model Number			Input (BTUH)		Efficiency AFUE										ENERGY STAR®							Cooling Capacity CFM range @ .5 in. w.c. (125 Pa)																Dimensions H x W x D Inches (Millimeters)													Shipping Wt. Lbs (Kg)
					Upflow/Hz					Downflow
G97CMN0601714A			60,000		97.0%					95.0%					X							510-1335																35 x 17-1/2 x 29-1/2 (889 x 445 x 750)													154 (69)
G97CMN0602120A			60,600		98.0%					96.7%					X							540-1905																35 x 21 x 29-1/2 (889 x 533 x 750)													159 (72)
G97CMN0801714A			80,000		97.0%					95.0%					X							490-1375																35 x 17-1/2 x 29-1/2 (889 x 445 x 750)													164 (74)
G97CMN0802120A			80,000		97.0%					95.0%					X							750-1945																35 x 21 x 29-1/2 (889 x 533 x 750)													169 (77)
G97CMN1002122A			100,000		97.0%					95.0%					X							715-2160																35 x 21 x 29-1/2 (889 x 533 x 750)													179 (80)
G97CMN1202422A			120,000		97.0%					95.0%					X							680-2185																35 x 24-1/2 x 29-1/2 (889 x 622 x 750)													203 (91)

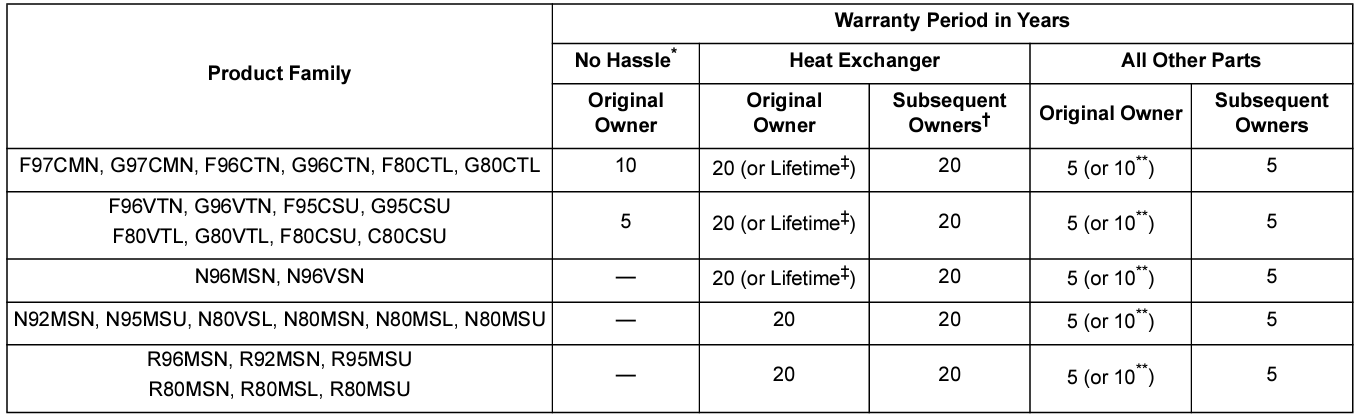

Warranties:







Accessories:



For G97CMN Series Furnaces

ACCESSORIES

PART NUMBER

COMPONENT NAME

DESCRIPTION

0601714

0602120

0801714

0802120

1002122

1202422

NAHB00101CT

EXTERNAL TRAP KIT

CONDENSATE TRAP

X

X

X

X

X

X

NAHA00110DA

DRAIN ACCESSORY

1/2” CPVC to 3/4” PVC (10 PACK)

X

X

X

X

X

X

NAHA002CV

VENT TERMINATION KIT

2” CONCENTRIC VENT

X

X

X

X

X

-

NAHA001CV

3” CONCENTRIC VENT

X

X

X

X

X

X

NAHA00101VC

INTERNAL VENT KIT

THROUGH THE CABINET

X

X

X

X

X

X

NAHA00301VT

DIRECT VENT TERMINATION KIT

2” BRACKET

X

X

X

X

X

-

NAHA00401VT

3” BRACKET

X

X

X

X

X

X

NAHA00101CK

INLET AIR PIPE COUPLING

COUPLING FOR POLYPROPYLENE VENT SYSTEMS

X

X

X

X

X

X

NAHA00101HV

HORIZONTAL INSTALLATION KIT

TRAP GROMMET (direct Vent application only)

X

X

X

X

X

X

NAHA00101HH

FREEZE PROTECT KIT

CONDENSATE DRAIN LINE - TAPE

X

X

X

X

X

X

NAHA00201HH

CONDENSATE FREEZE PROTECT KIT

CONDENSATE TRAP WITH HEAT PAD

X

X

X

X

X

X

NAHA01101SB

FLOOR BASE KIT

COMBUSTIBLE FLOOR

X

X

X

X

X

X

AGAGC9NPS01B*

GAS CONVERSION KIT

NATURAL TO PROPANE

X

X

X

X

X

X

AGAGC9PNS01B*

PROPANE TO NATURAL

X

X

X

X

X

X

1188594†

GAS VALVE TOWER PORT ADAPTER KIT

ADAPTER FOR GAS VALVE

X

X

X

X

X

X

325531-402†

WASHABLE FILTER (SINGLE PACK)

16” x 25” x 3/4” FILTER

X

-

X

-

-

-

325531-403†

20” x 25” x 3/4” FILTER

-

X

-

X

X

-

325531-404†

24” x 25”  x3/4” FILTER

-

-

-

-

-

X

FHG1625-2†

BOTTOM FILTER RACK (WITHOUT FILTER)

16” x 25” RACK

X

-

X

-

-

-

FHG2025-2†

20” x 25” RACK

-

X

-

X

X

-

FHG2424-2†

24.5” x 24” RACK

-

-

-

-

-

X

NAHB00101CA

COIL ADAPTER KIT

WITH NO OFFSET

X

X

X

X

X

X

NAHB00201CA

WITH SINGLE OFFSET

X

X

X

X

X

X

NAHB00301CA

WITH DOUBLE OFFSET

X

X

X

X

X

X

NAHA01701RA

RETURN AIR KIT

17-1/2” wide

X

-

X

-

-

-

NAHA02101RA

21” wide

-

X

-

X

X

-

NAHA02401RA

24-1/2” wide

-

-

-

-

-

X

SYST0101CW

ION™ CONTROL SYSTEM

COMMUNICATING SYSTEM CONTROL

X

X

X

X

X

X

NAHA00101MS

MOTOR SIMULATOR

ECM MOTOR SIMULATOR KIT

X

X

X

X

X

X

NAHA001NK

CONDENSATE NEUTRALIZER KIT

NEUTRALIZES CONDENSATE

X

X

X

X

X

X



Error Codes:



Wiring Diagrams:
